← Braga lighting

ACTO Square

Braga · Ceiling and wall light

Two panels. Your combination. Choose the size, light and each finish individually.

1 · Size and version

2 · Finishes

Left and right refer to the front view.

Left panel

Right panel

3 · Colour temperature

The colour temperature is set during manufacture.

4 · Switching and dimming

5 · Quantity
Light excluding dimming surcharge
Finish surcharge
Unit price incl. VAT
Total

Incl. 19% VAT, plus shipping.

Made to your configuration – delivery time approx. 4 weeks

This light is manufactured according to your selected configuration. Before ordering, please check all details, including size, finishes, light colour and equipment.

If the statutory requirements for a custom-made product under section 312g(2), no. 1 of the German Civil Code (BGB) are met, there is no statutory right of withdrawal.

Your statutory warranty rights remain unaffected.

Information on the statutory right of withdrawal

Please acknowledge this information before adding your light to the cart. Changes to the configuration require a new confirmation.

Licht-Kraus item number
Manufacturer base model

The selected finishes and control are also saved in full in your cart.

Save configuration

ACTO in detail

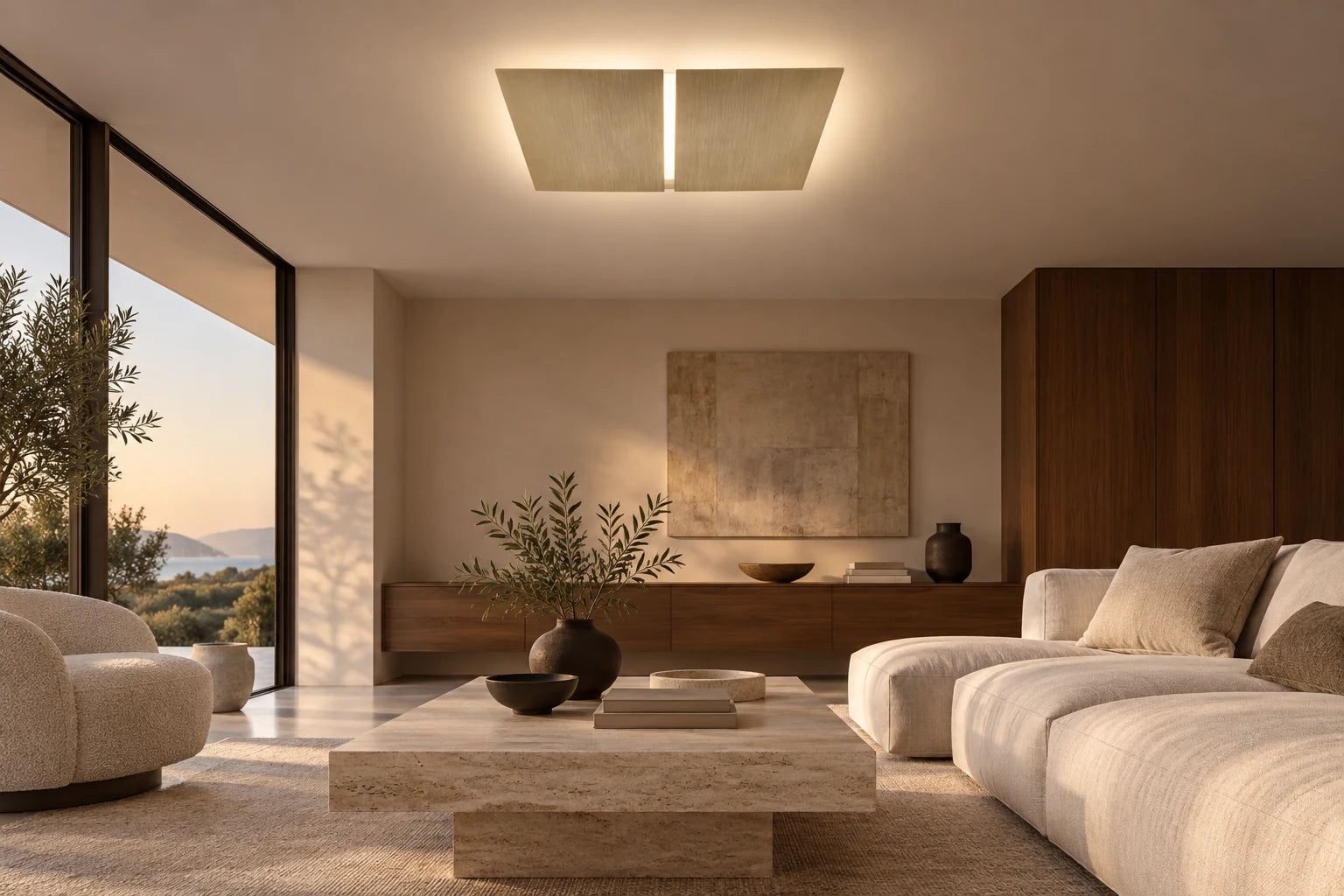

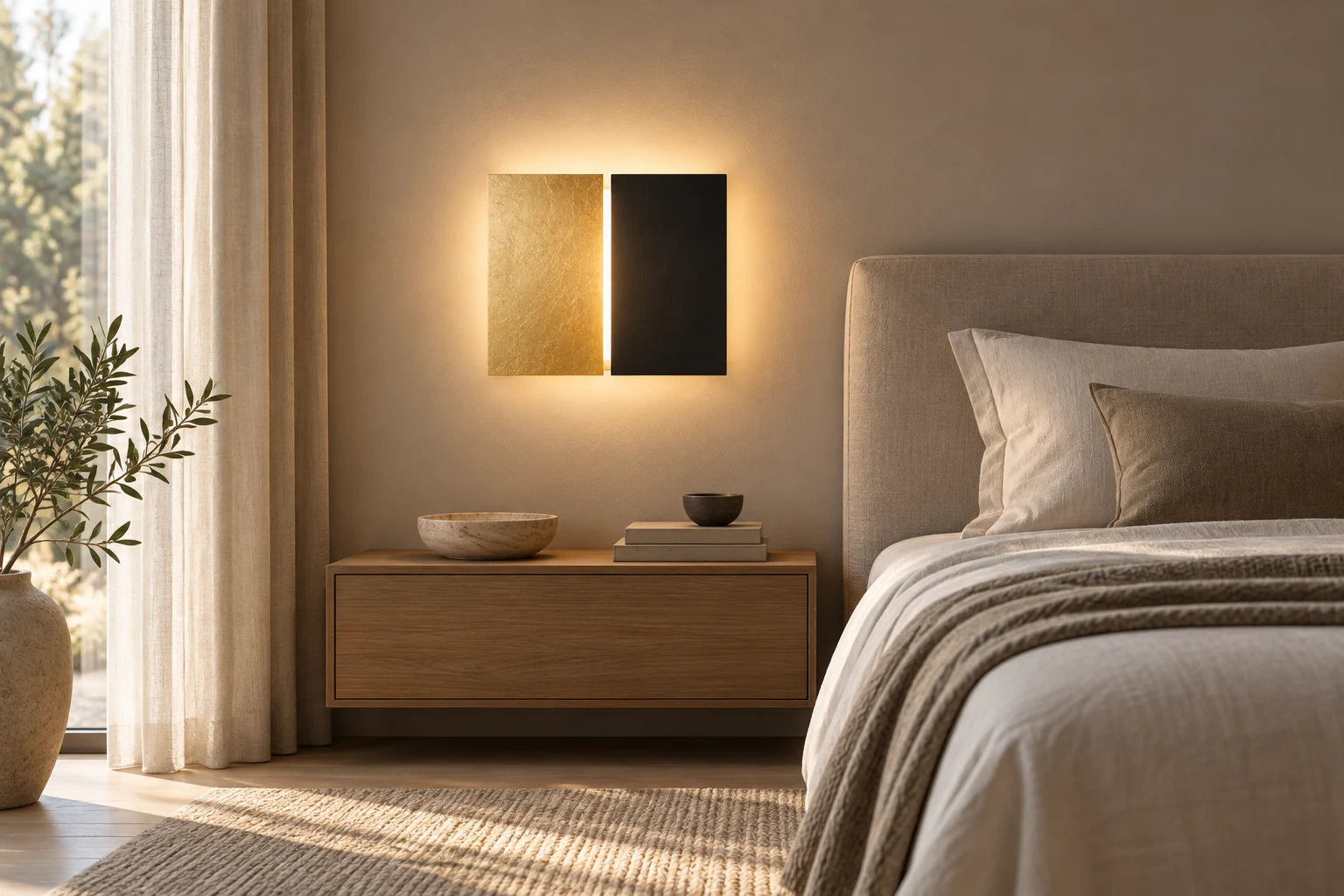

The square ACTO by Braga is a slim LED ceiling and wall light with two independently selectable finishes. Choose the size, fixed or sliding version, colour temperature and control to suit your space.

Made to your configuration – delivery time approx. 4 weeks

This light is manufactured according to your selected configuration. Before ordering, please check all details, including size, finishes, light colour and equipment.

If the statutory requirements for a custom-made product under section 312g(2), no. 1 of the German Civil Code (BGB) are met, there is no statutory right of withdrawal.

Your statutory warranty rights remain unaffected.

Technical specifications

  • Sizes: 45 × 45 / 60 × 60 / 80 × 80 cm
  • Height: 36 mm
  • Version: Fixed (2182) / Sliding (2179)
  • Colour temperature: 2700K / 3000K / 4000K
  • Control: On/Off – not dimmable; D4 – trailing-edge dimmable; D6 – DALI dimmable; D8 – Casambi dimmable
  • Supply voltage: 230 V AC · IP rating: IP20
  • Integrated LED module
SizeFixedSliding
45 cm21 W · 1700 lm31 W · 2800 lm
60 cm30 W · 2500 lm46 W · 4100 lm
80 cm42 W · 3500 lm69 W · 6200 lm

Luminous flux according to the manufacturer for each base version; separate values for each colour temperature are not specified.

The two panels can each be selected from 17 finishes. Original finish codes are saved with the selected configuration.

All selling prices include 19% German VAT.

Technical details of your selection

Manufacturer datasheet for your version (PDF) →

Luminous flux as specified by the manufacturer for each base model. Separate values by colour temperature are not provided.

Manufacturer & product safety (GPSR)

BRAGA ILLUMINAZIONE S.A.S. di Braga Davide & C.
Via Soniga 7
25080 Nuvolento (BS)
Italy

Telephone: +39 030 691775
Fax: +39 030 691296
Email: info@fratellibraga.it
https://www.fratellibraga.it/

P.IVA / CF: IT 00737770172
Manufacturer website →

For dry indoor areas only (IP20), for wall or ceiling mounting. Installation and connection to 230 V must be carried out by a qualified electrician; disconnect the power before work. Follow the manufacturer’s instructions and installation manual.
